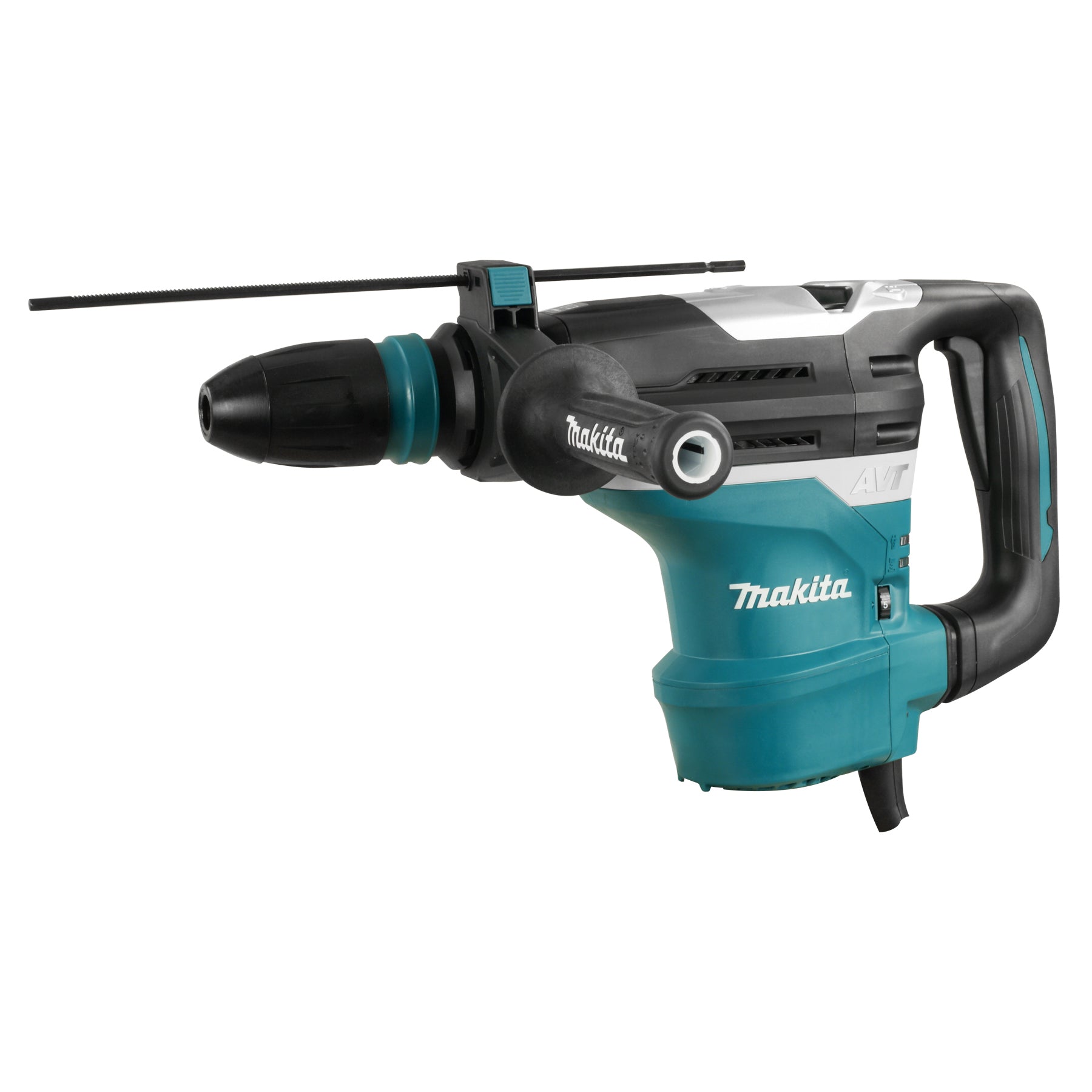

1-9/16 in. SDS-MAX Rotary Hammer

Variable speed; constant speed control; soft start

• Advanced Anti-Vibration Technology (AVT™) incorporates vibration-absorbing housing, a dynamic vibration absorber and a damper spring to actively counteract tool vibration for greatly reduced transmission to the operator
• Incorporates a trigger and lock-on switch for easy operation during intermittent or extended demolition work
• Torque limiter stops rotation if bit jams for increased operator safety and enhanced tool protection
• Soft start feature gradually increases speed to eliminate start up shock
• No load motor suppression limits vibration and bit deflection when idling
• Variable speed dial allows operator to adjust speed based on materials or application
• 24 bit angle settings allow the bit to be set at the optimum operating angle
• One-touch sliding chuck for easy bit installation and removal
• LED service light notifies the user when to replace carbon brushes
• LED power light indicates active power supply
• Ergonomic soft rubber grip design for vibration absorption and comfortable operation
• Includes straight handle (drilling) and D-handle (demolition)

• Height 262.9 mm
• Width 112 mm
• Length 479 mm
• Weight 6849.2 g

• Height 287 mm
• Width 140 mm
• Length 598.9 mm
• Weight 11902.3 g

• Type de mèche SDS-MAX
• Capacités maximales Béton (mèches carbure) 1-9/16 po (40 mm), Béton (mèches creuses) 4-1/8 po (105 mm)
• No Load Speed 250 - 500 tr/min
• Coups par minute 1 450 - 2 900 cps/min
• Force d'impact 11,4 J (8,4 lb/pi)
• Ampérage (120 V) 11,0 A
• Niveau de vibration 5,0 m/s²
• Niveau sonore 92 dB(A)
• Longueur hors tout 18-11/16 po (479 mm)
• Type de mèche SDS-MAX
• Capacités maximales Béton (mèches carbure) 2-1/16 po (52 mm), Béton (mèches creuses) 6-5/16 po (160 mm)
• No Load Speed 150 - 310 tr/min
• Coups par minute 1 100 - 2 250 cps/min
• Force d’impact 21 J (15,5 lb/pi)
• Ampérage (120 V) 15,0 A
• Niveau de vibration 9,0 m/s²
• Niveau sonore 98 dB(A)
• Longueur hors-tout 23-1/2 po (599 mm)
