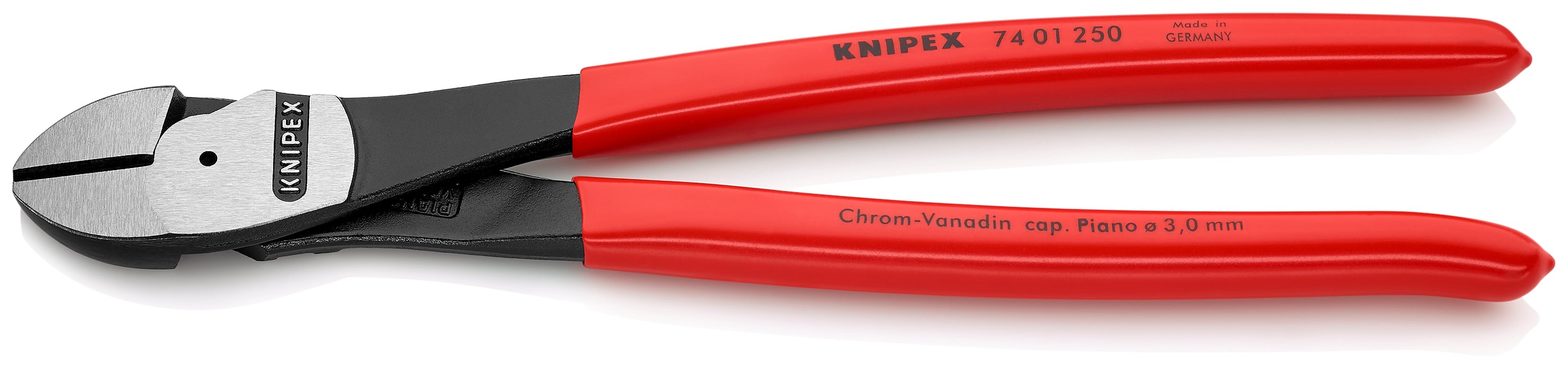

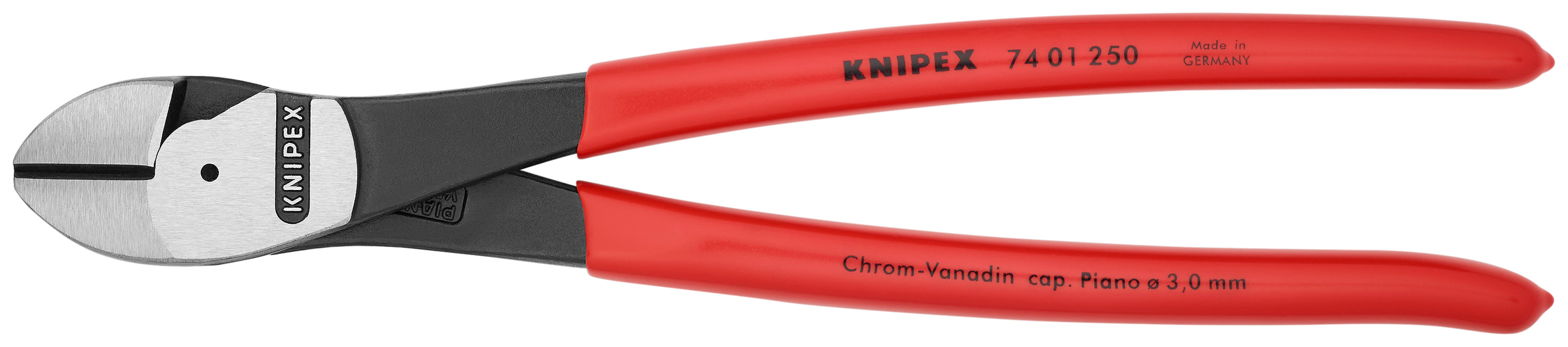

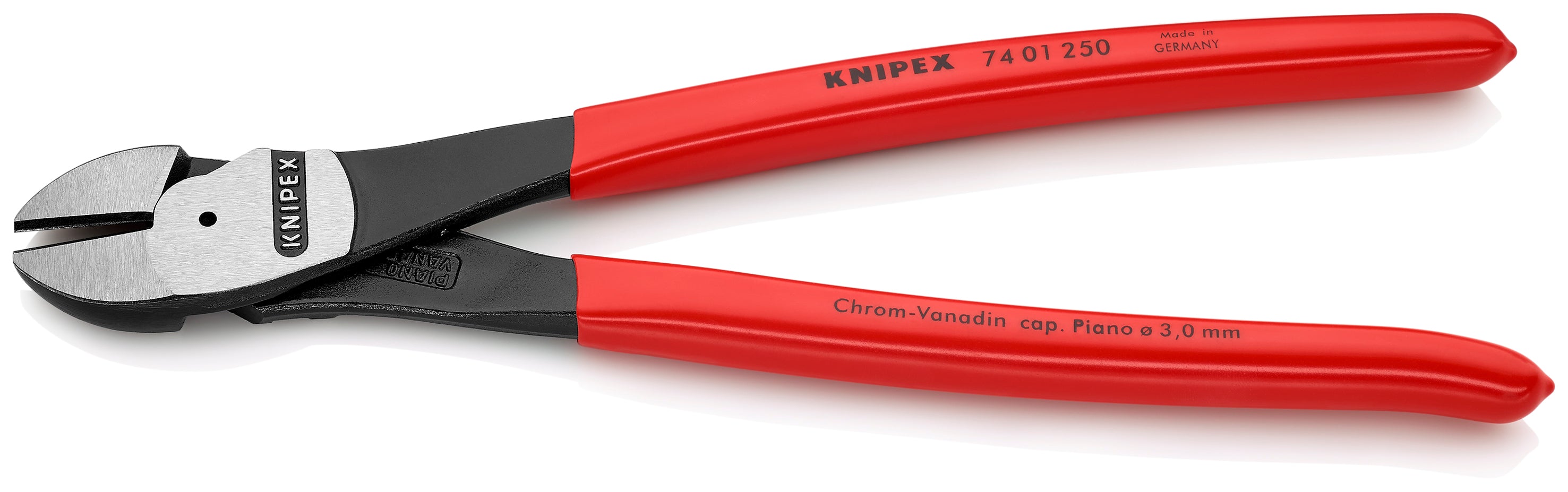

High Leverage Diagonal Cutters 74 01 250

High-Leverage Diagonal Cutters

• 20% less effort required compared to conventional diagonal cutters of the same length
• Heavy-duty forged axle
• For very tough, continuous use
• High cutting performance with minimum effort due to optimal coordination of cutting edge angle and transmission ratio

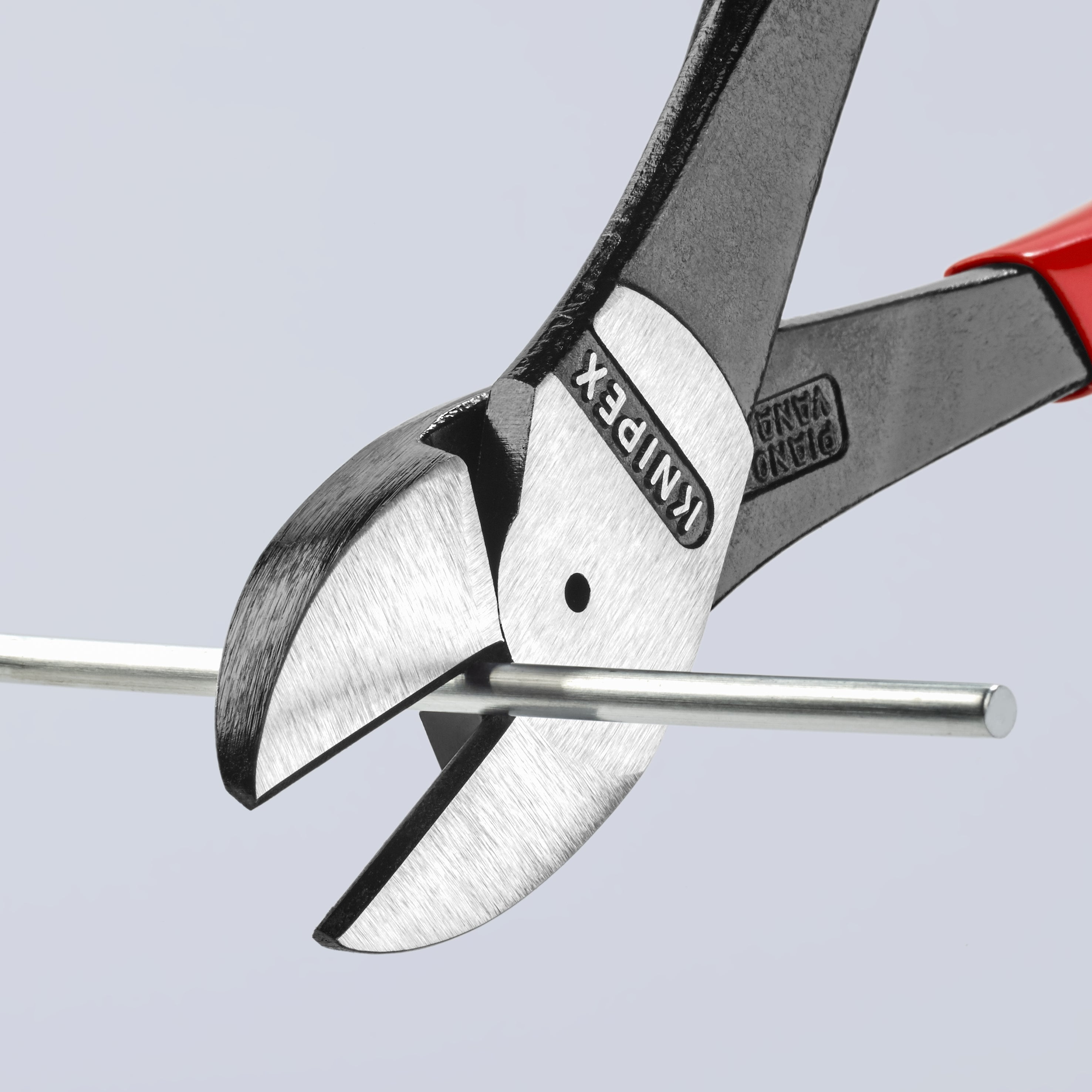

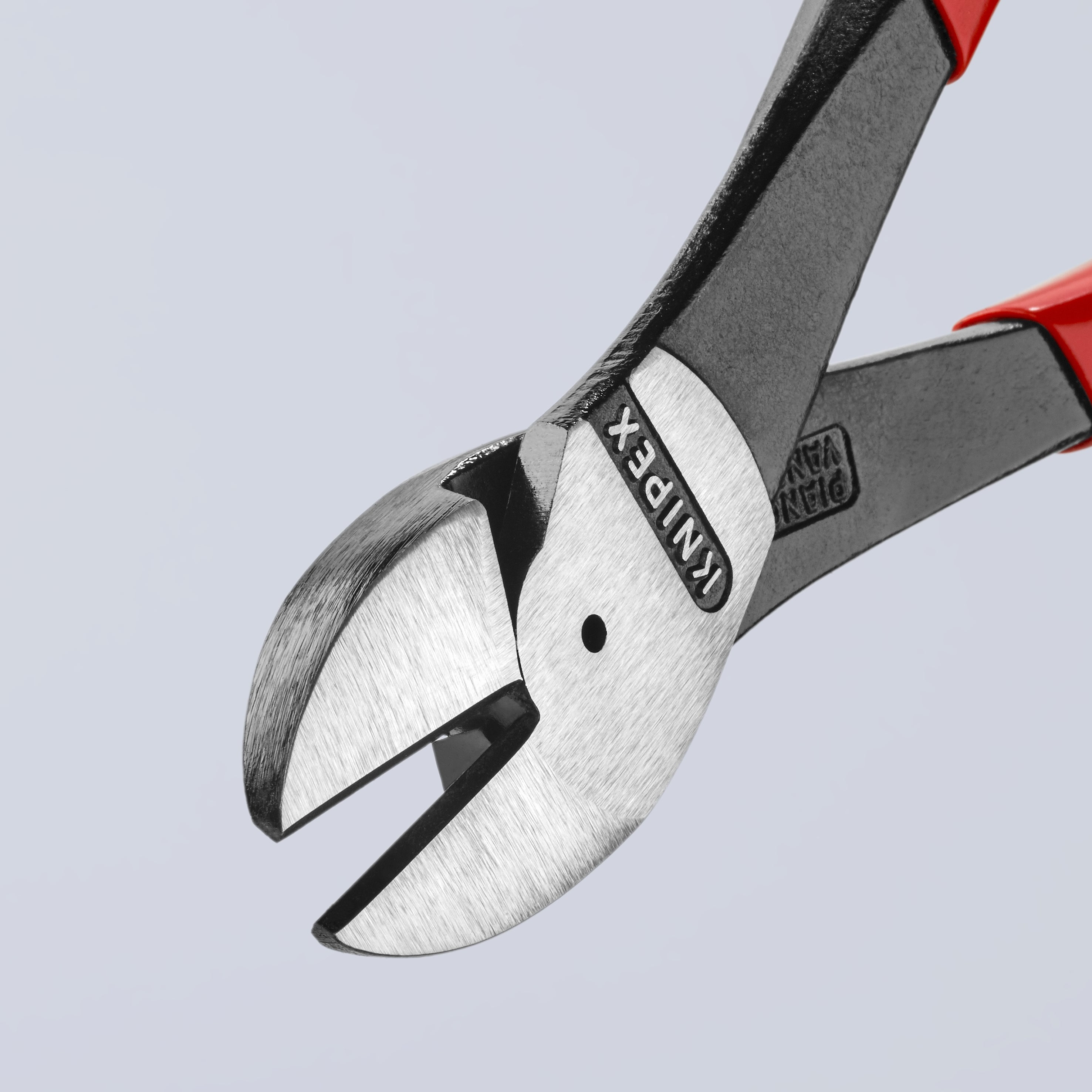

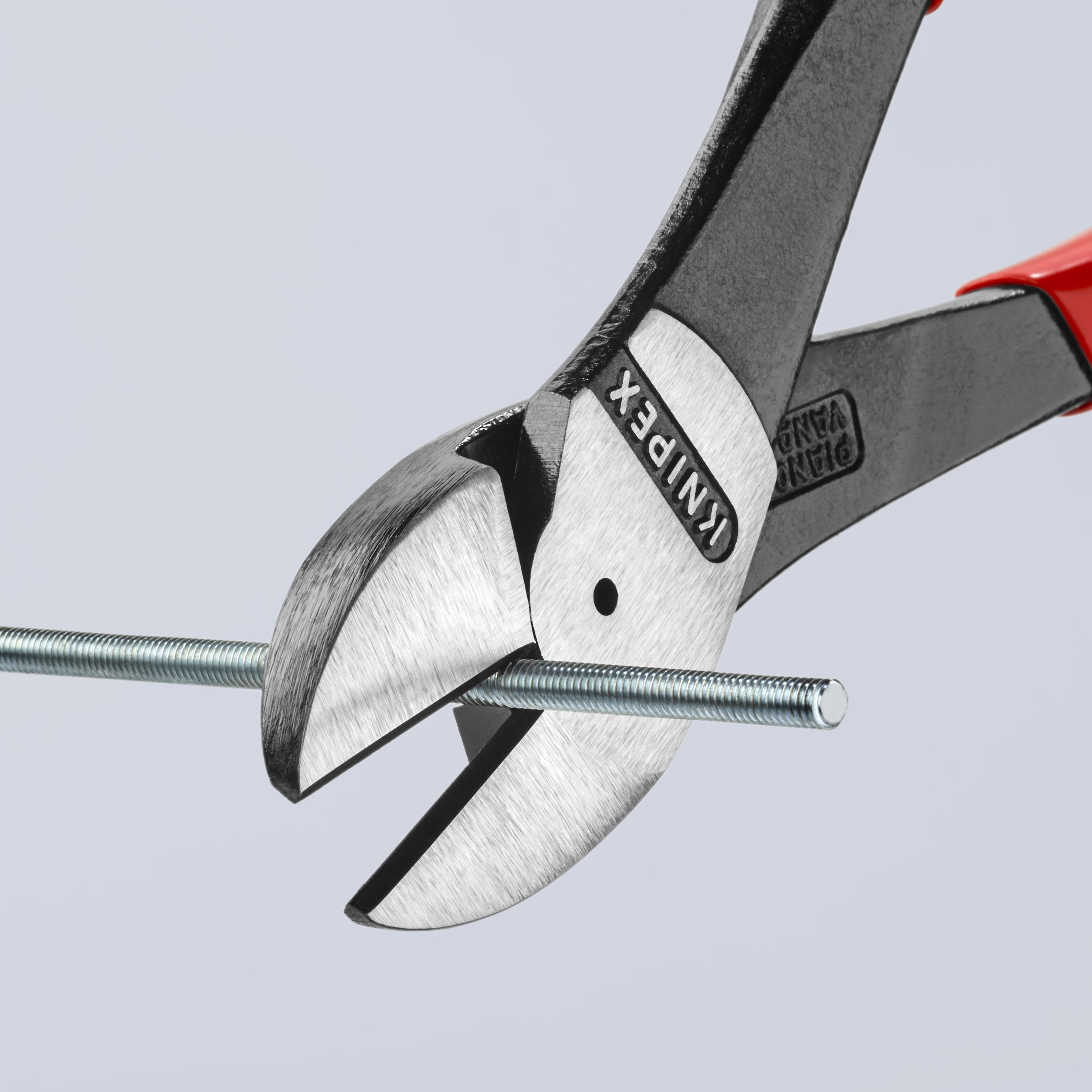

• Precision induction-hardened cutting edges (approx. 64 HRC) cut several types of wire, including piano wire

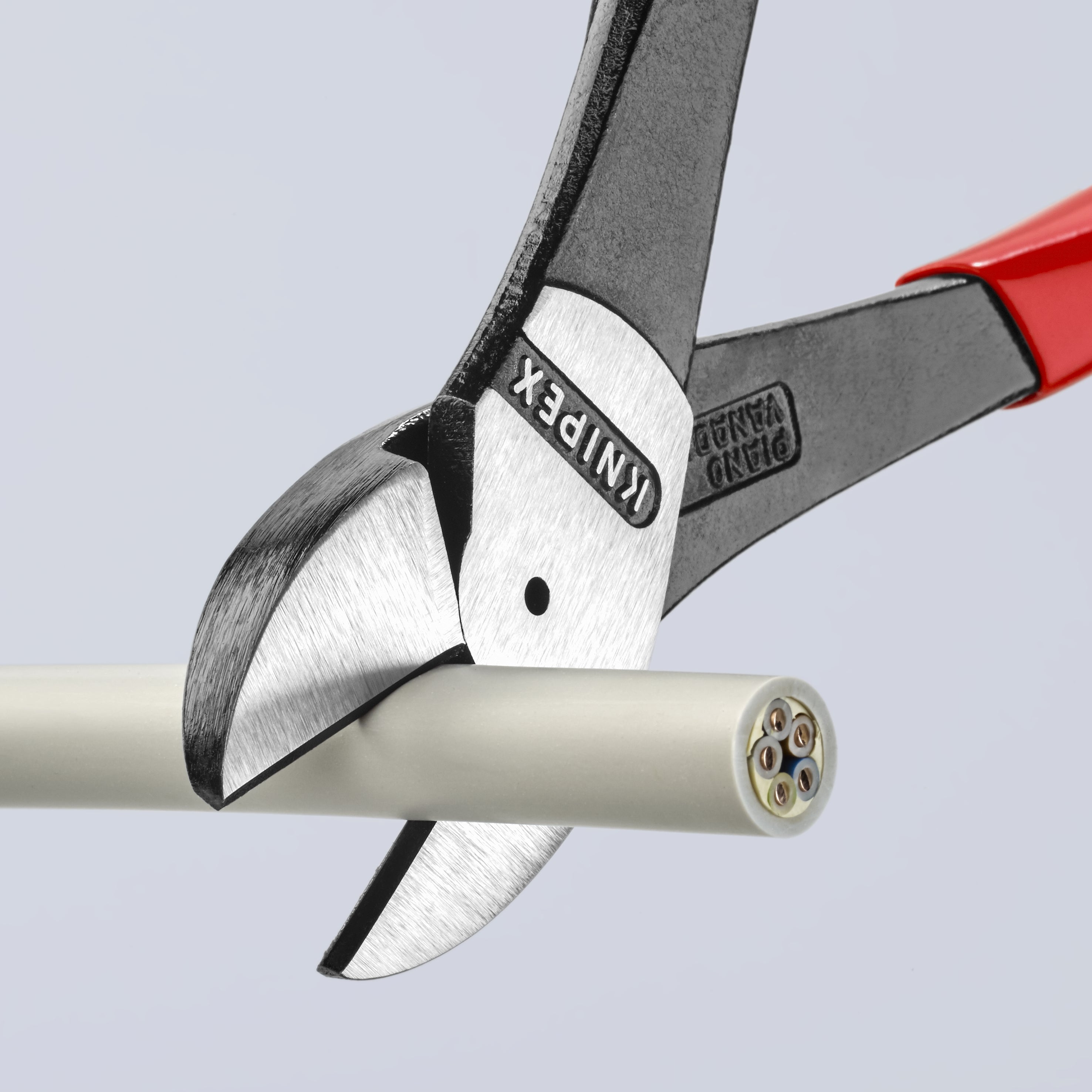

• 10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
• Rugged chrome vanadium steel; forged, multi-stage oil-hardened

• Height 16 mm
• Width 54 mm
• Length 245 mm
• Weight 391 g

• Isolé 1000 V Non
• Fini Poli
• Autre fini Atramentisé noir
• Type de poignée Plastic coating
• Type d'articulation Forged-in axle
• Longueur de poignée 9 3/4 po
• Ressort d'ouverture Non
• Indicateur ESD Non
• Forme du tranchant tranchant avec biseau
• Capacité de coupe - fil mi-dur 3/16 po
• Capacité de coupe - fil dur 9/64 po
• Capacité de coupe - corde à piano 1/8 po
• Dureté du tranchant Approx. 64 HRC
• DIN DIN ISO 5749
• REACH Ne contient pas de SVHC
• RoHS Non applicable
