INDICATOR, PHASE SEQ/MOTOR ROT

INDICATOR, PHASE SEQ/MOTOR ROT

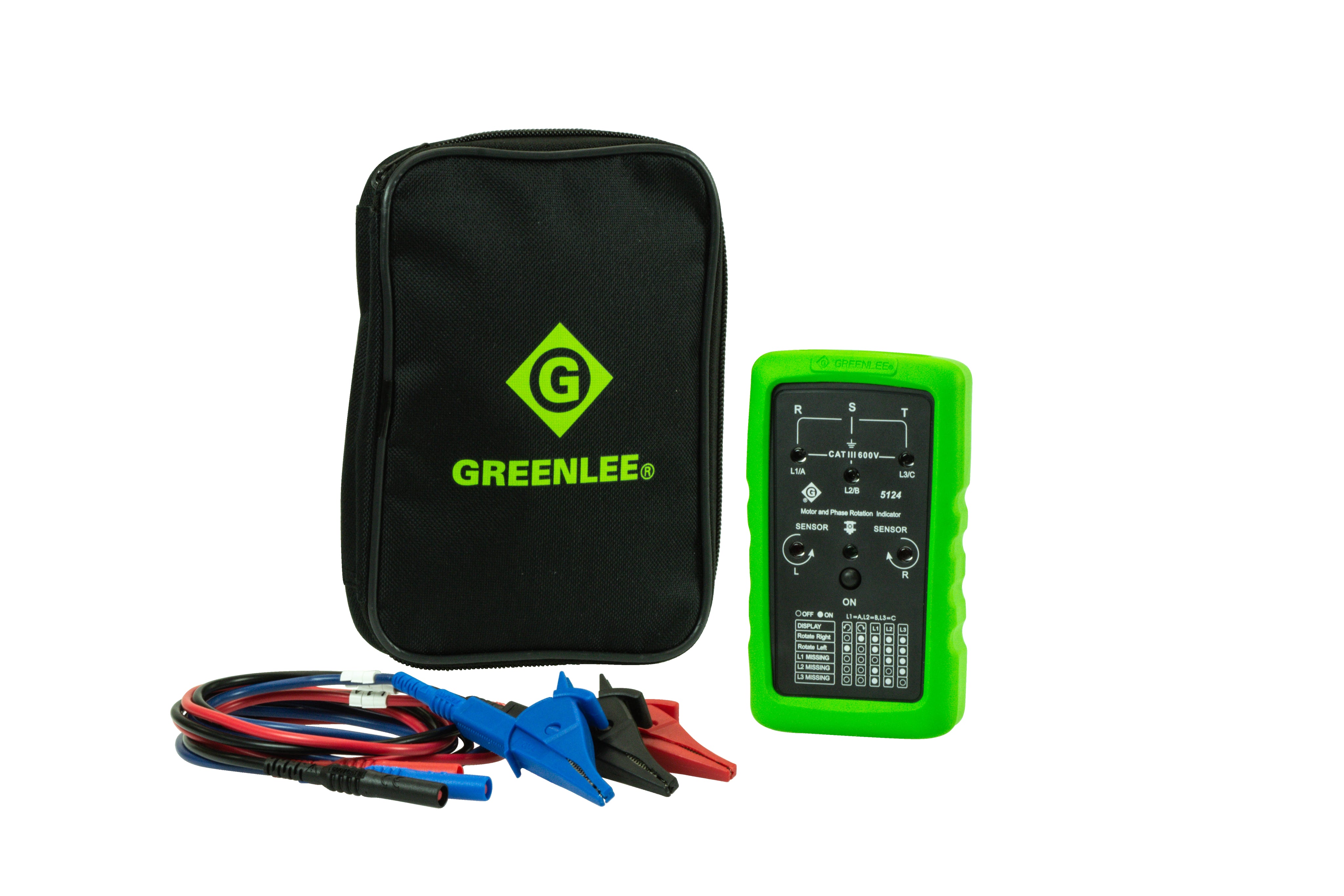

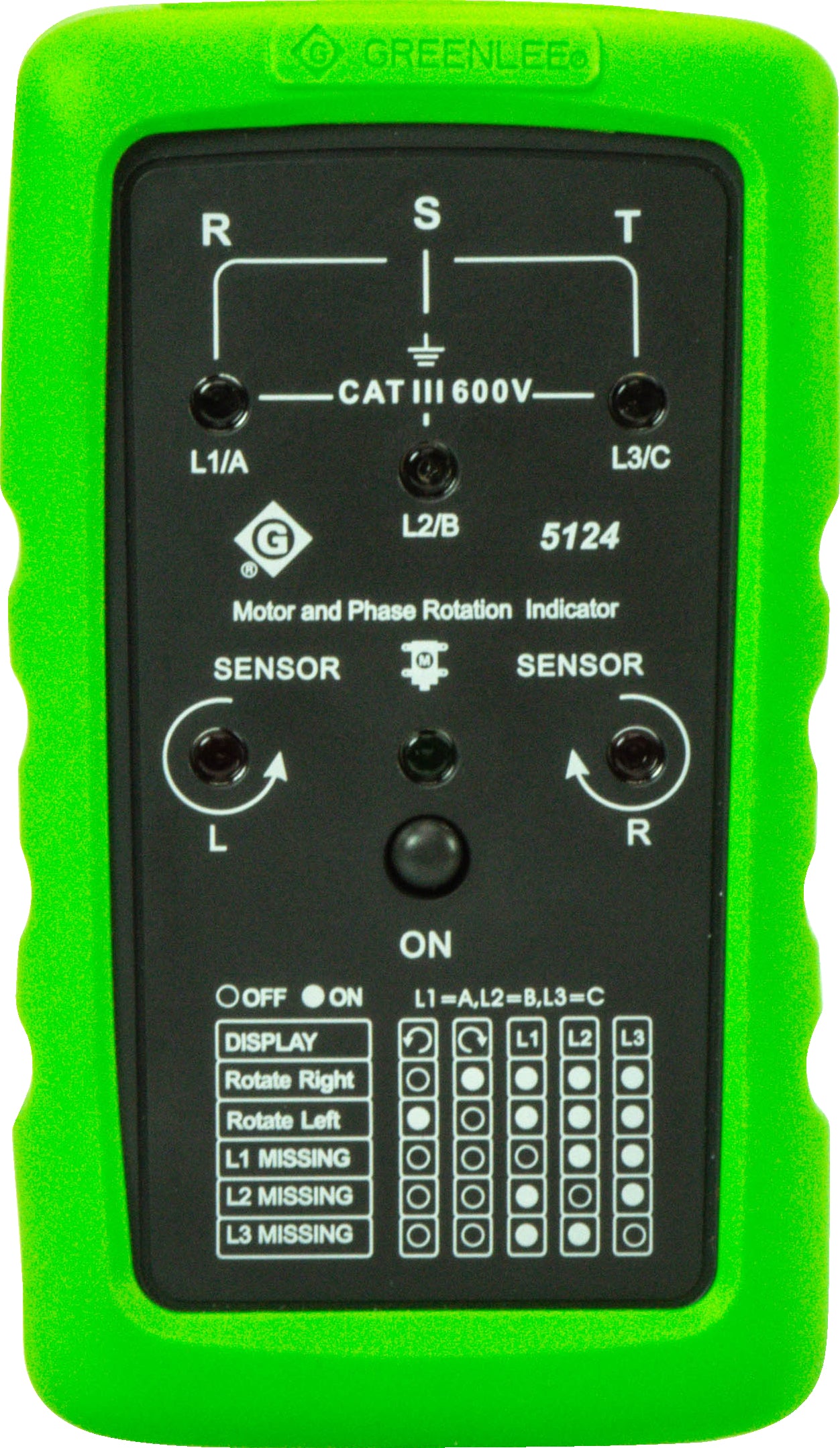

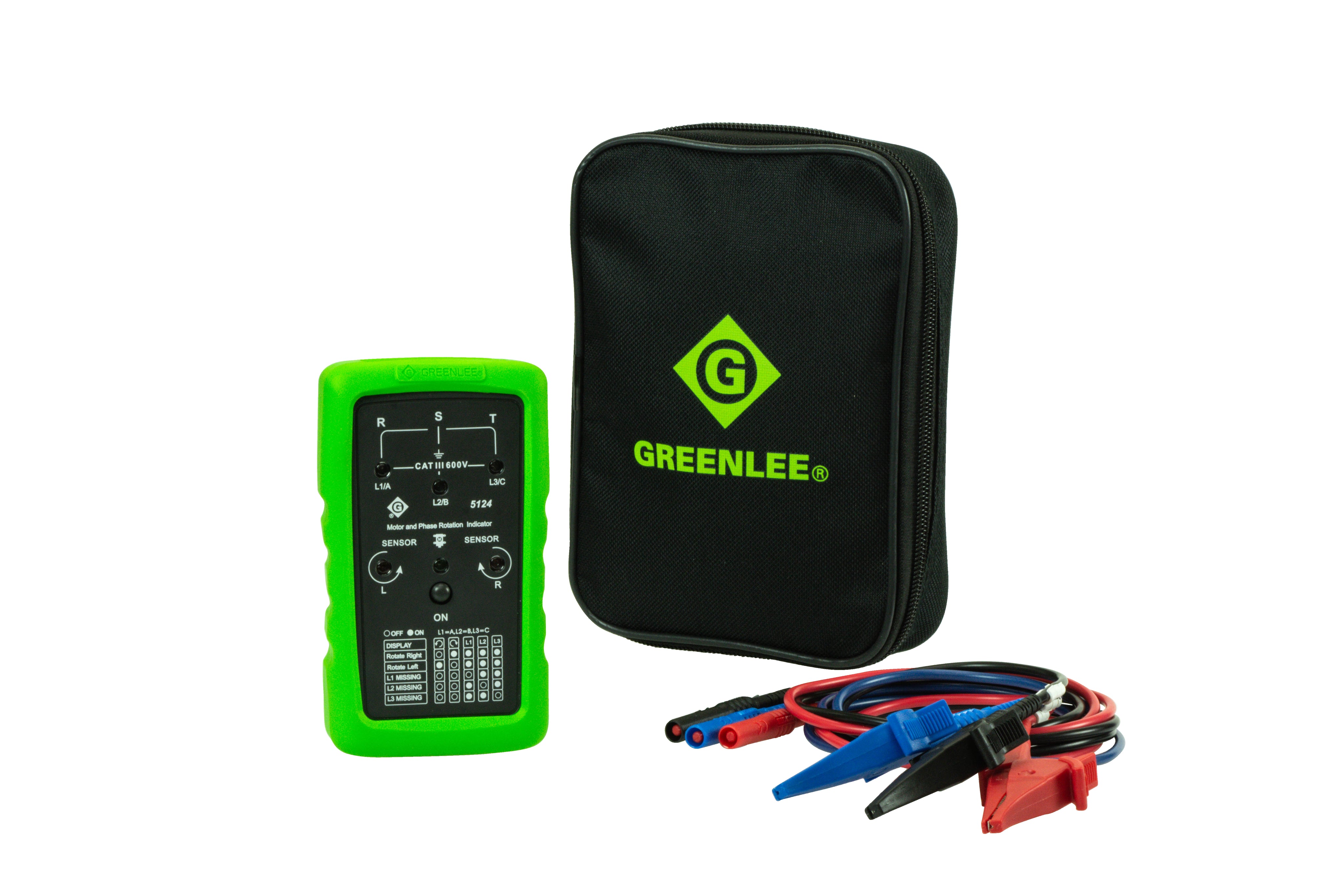

• The Phase Sequence and Motor Rotation Meter detects live phase and sequence orientation of three-phase power sources and industrial equipment conductors to ensure correct installation.
• The motor rotation function identifies the direction of rotation of industrial equipment such as motors, compressors, and generators.
• The non-contact motor rotation function determines the rotation of single-phase and three-phase running motors without using leads.

• Height 58.4 mm
• Width 154.9 mm
• Length 251.5 mm
• Weight 471.7 g

• Type Tests de séquence de phase et de rotation du moteur
• Norme Conformité: CE, CETLUS
• Tension nominale CAT III 600 V
• Fréquence nominale 15 Hz - 400 Hz
• Phase 90 Vca - 600 Vca
• Température nominale 0 - 40 °C
• Affichage Ampoules DEL
• Dimensions 123 mm x 71 mm x 29 mm

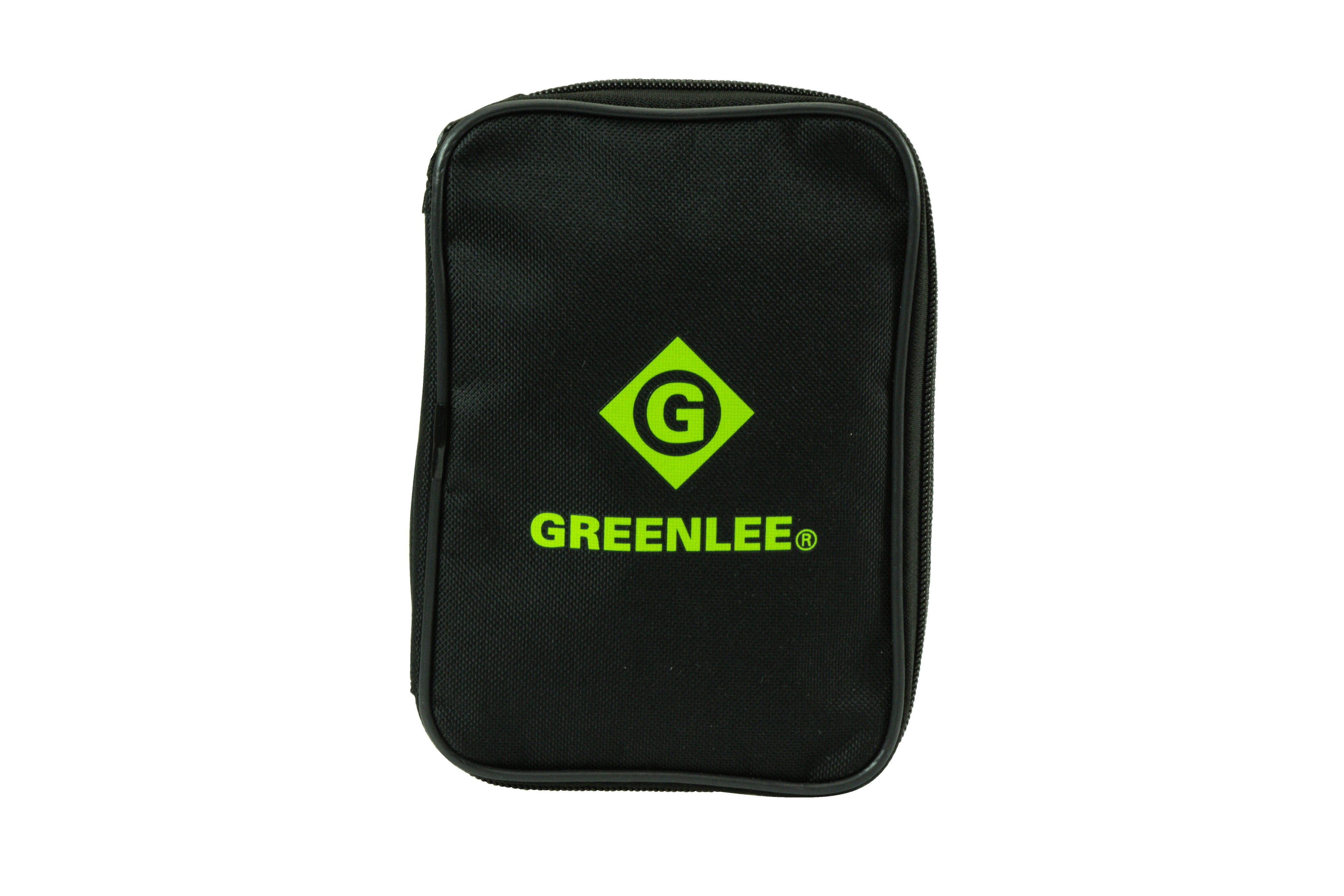

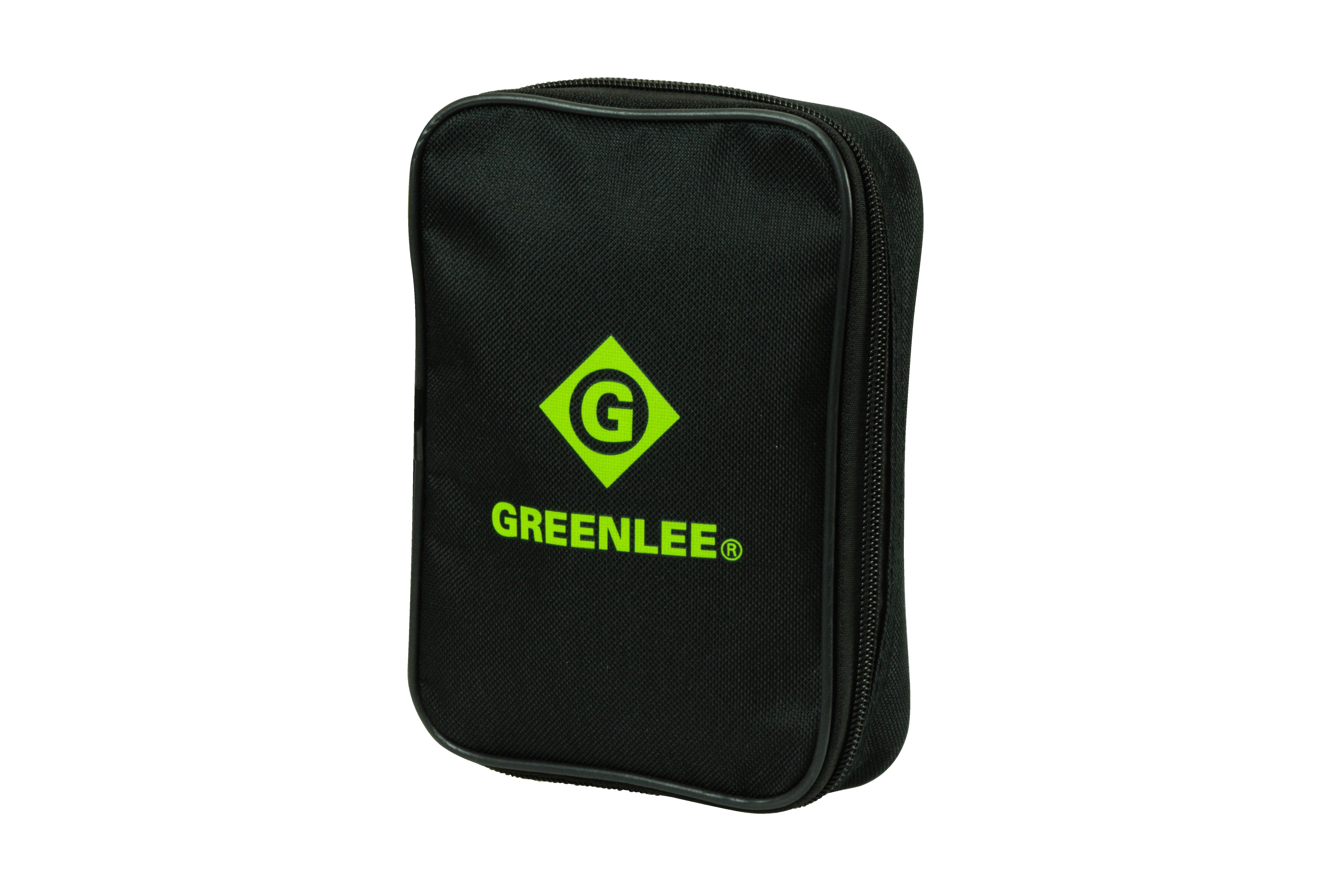

• Accessoires compris Câbles banane tricolores, pinces crocodile, pile 9 V et étui de transport souple
