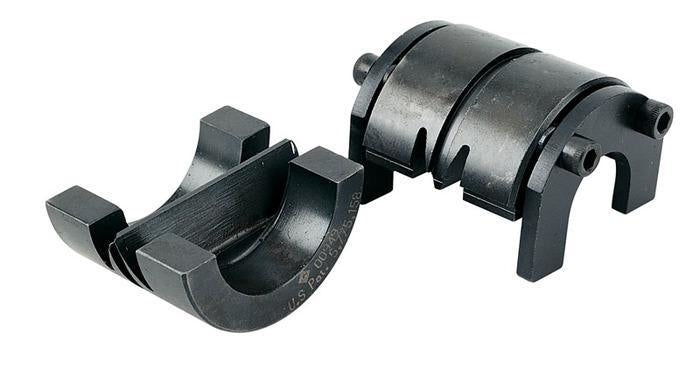

DIE, CUTTER (U TYPE)

DIE, CUTTER (U TYPE)

• Works with all 12-ton "U" type crimping tools
• Less expensive than dedicated cutting tools
• Simple installation into crimping tools
• No adjustment required for cutting different materials
• Will cleanly cut guy wire (including EHS), grade 60 rebar, ground rod, mild steel bolts up to 16 mm in size, and up to 477 kcmil (240 mm2) ACSR
• U.S. Patent No. 5,775,158

• Height 45.7 mm
• Width 63.5 mm
• Length 256.5 mm
• Weight 299.4 g

• Capacité Hauban: 16 mm de diamètre, tige de terre: 16 mm de diamètre, hauban EHS 16 mm de diamètre, boulons en acier doux: 16 mm de diamètre, barre d'armature (Grade 60): 16 mm de diamètre, ACSR: 240 mm²
• Type Hauban, type U
