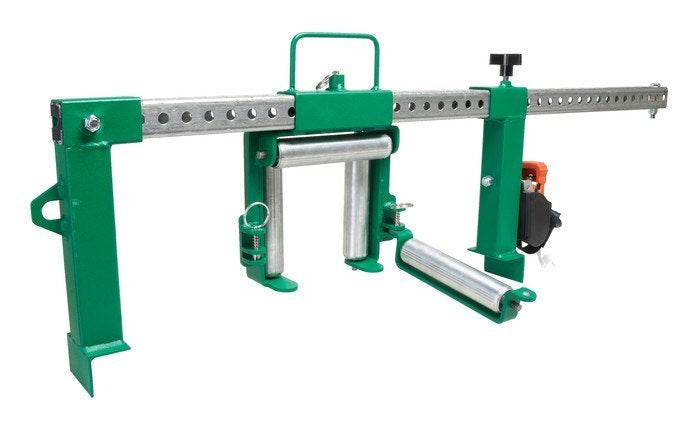

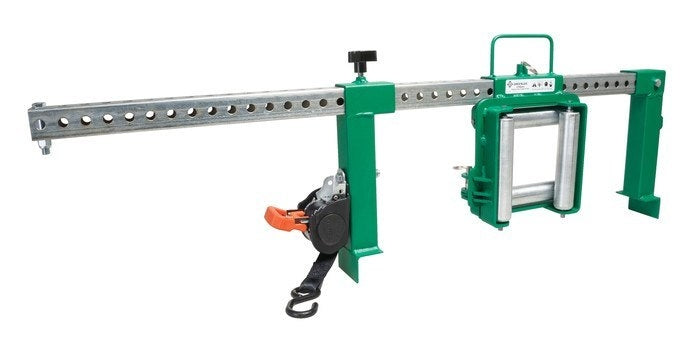

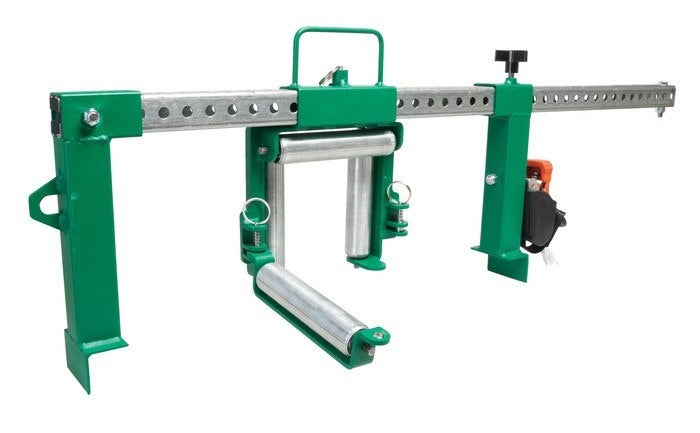

ROLLER, CABLE - HEAVY DUTY (PACKAGED)
Regular price
$1,317.11 CAD
Couldn't load pickup availability
You have a question? Contact us!
ROLLER,CABLE-HEAVY DUTY (PKGD)
- No loose parts
- Mounting system on top of the stand
- 4-roller conveyor guide with 2 spring-loaded detent pins for easy cable movement from both sides
- Durable 1.8 m (6 ft) long retractable ratchet strap for robust assembly on the stand
- A closed conveyor roller guide that captures the cable in the guide without damaging its sheath
- Easily handles forces up to 45.4 kg (200 lbs)
- Designed and assembled in the USA
- Height 101.6 mm
- Width 355.6 mm
- Length 1097.3 mm
- Weight 9734.1 g
- Country of Origin United States

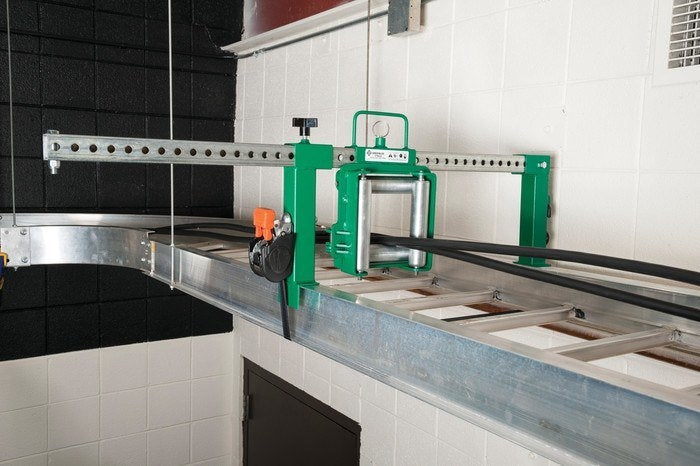

- Application Allows cables to be pulled along cable trays that are not basket-shaped. Designed to facilitate load forces when pulling cables, particularly just before 90° bends and offsets, without taking up space inside the tray.
- Material(s) Steel
- UPC 783310027973
- Manufacturer Part Number CTR200
- Longueur hors tout 1 085,9 mm (42-3/4 po)
- Section du câble 101 mm (4 po)
- Hauteur hors-tout 362 mm (14-1/4 po)
- Diamètre d’écartement Taille d’ouverture du rouleau: carrée de 101,6 mm (4 po)
- Conception Pattes réglables pour s’ajuster aux largeurs du plateau de 304,8 mm (12 po) à 914,4 mm (36 po)
- Taille d’ouverture du rouleau Carrée de 101,6 mm (4 po)
- Capacité 90 kg (200 lb)
- Capacité de traction 90 kg (200 lb)
